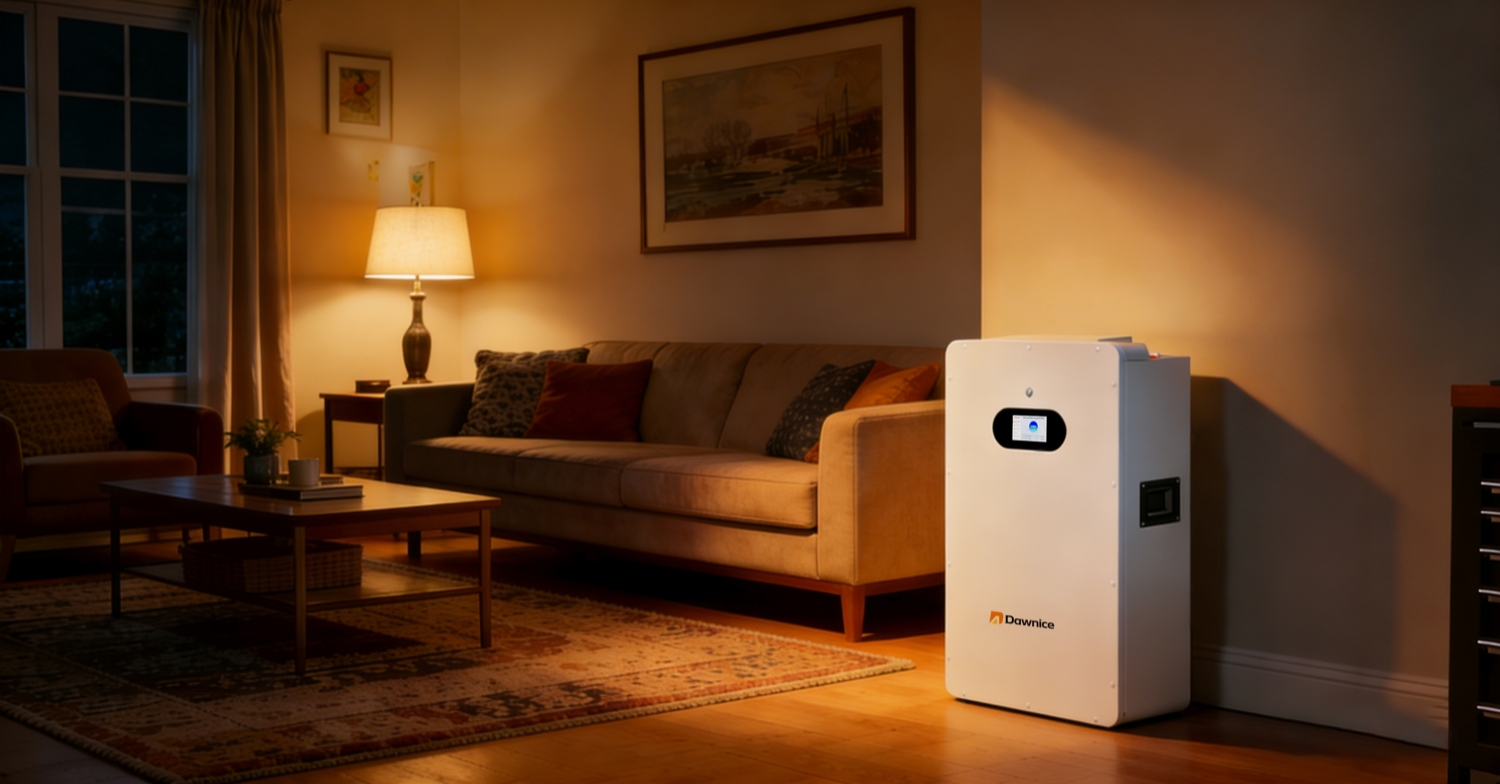

Dawnice 16kWh Solar Battery Storage System for Home Backup
| Battery Type | LiFePO4 (Lithium Iron Phosphate) |
|---|---|
| Nominal Voltage | 51.2V |
| Configuration | 3.2V 314Ah / 16S1P |
| Capacity | 314Ah |
| Nominal Energy | 16.08 kWh |
| Usable Energy (@90% DOD) | 14.47 kWh |
| Max. Charge / Discharge Current | 150A |
| Voltage Range | 44.8V ~ 57.6V |
| Parallel Scalability | Up to 15 units in parallel |
| Communication Interface | CAN, RS485 |
| Cycle Life (@25°C, 90% DOD) | ≥8000 cycles |
| Warranty Period | 5+5 years |
| Cumulative Discharge Energy | 25.8 MWh |
| Weight | 127 kg |
| Dimensions (W × D × H) | 460 × 245 × 800 mm |
| Installation Method | Wall / Ground Mounted |
| IP Rating | IP54 |
| Safety Certification (Pack) | UN38.3, MSDS, IEC62619(CB), CE-EMC, IEC63056 |
| Safety Certification (Cell) | UN38.3, MSDS, IEC62619, CE, UL1973, UL2054 |
| Protection System | BMS (Battery Management System) |
| Charging Temperature Range | 0°C ~ 55°C |
| Discharging Temperature Range | -20°C ~ 55°C |
| Altitude | ≤2000 m |
| Humidity | ≤90% (Non-condensing) |
Universal Compatibility for a Smart Energy Home
The Dawnice HZEB-LCT-16 features state-of-the-art communication capabilities, equipped with RS232, RS485, and CAN ports. It is pre-configured with communication protocols for virtually all leading inverter brands, including Deye, Growatt, Sol-Ark, SRNE, and Victron. This ensures a seamless, plug-and-play integration process, allowing your system to operate as a unified, intelligent unit. This wide-ranging compatibility simplifies installation and offers you the flexibility to choose or upgrade your inverter, safe in the knowledge that your Dawnice battery will integrate perfectly.
Robust Safety Architecture for Reliable Power
Safety and longevity are engineered into every aspect of the Dawnice HZEB-LCT-16. Holding rigorous certifications like IEC, CE, UN38.3, and MSDS, it features a multi-layered safety system centered around a high-precision BMS. This system provides continuous, real-time protection against over-voltage, under-voltage, over-current, and extreme temperatures. The durable IP54-rated casing provides excellent protection against dust and water ingress, ensuring consistent, safe performance and peace of mind, regardless of whether the unit is installed in a garage, utility room, or protected outdoor area.
A Partner You Can Trust, Now with Local Support
With a track record of successful deployments in over 160 countries, Dawnice is a name synonymous with quality and reliability. As we launch our dedicated Uganda branch, we are bringing our global expertise closer to you. This new hub will offer localized warehousing, expert technical assistance, and a rapid-response service team. By choosing the Dawnice HZEB-LCT-16, you are investing in a world-class energy storage solution supported by a local partner committed to your long-term satisfaction and energy success.
